COPY-TRANSFORM-PASTE

Zero-Shot Object-Object Alignment Guided by Vision-Language and Geometric Constraints

Rotem Gatenyo · Ohad Fried

Canvas Lab, Reichman University

arXiv Code Benchmark

We tackle zero-shot alignment of two 3D meshes from a natural-language prompt describing their spatial relation. Our method optimizes relative pose and scale with differentiable rendering and VLM guidance, while enforcing contact and reducing interpenetration via geometric constraints.

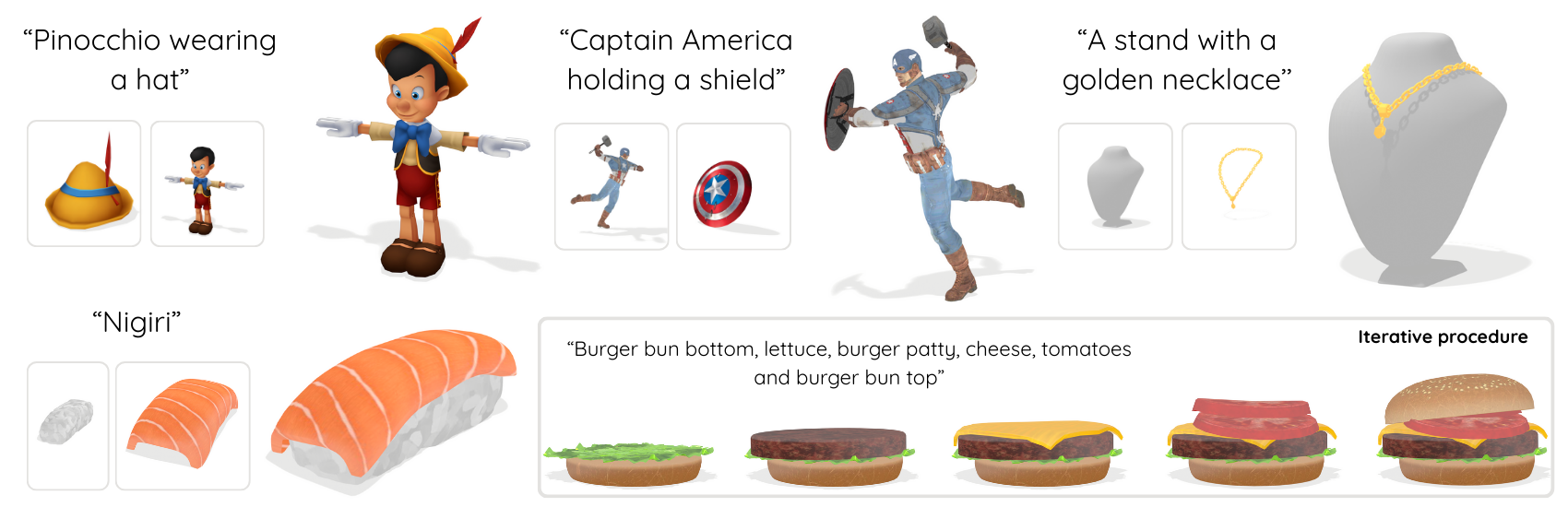

Text-guided object-object alignment and iterative composition. The figure shows four independent examples, each presenting the input meshes and text prompt alongside our alignment result. In addition, an iterative example demonstrates progressive assembly of a burger: the output of stage k is incorporated into the input of stage k+1, gradually forming the final arrangement.

Abstract

We study zero-shot 3D alignment of two given meshes, using a text prompt describing their spatial relation---an essential capability for content creation and scene assembly. Earlier approaches primarily rely on geometric alignment procedures, while recent work leverages pretrained 2D diffusion models to model language-conditioned object-object spatial relationships. In contrast, we directly optimize the relative pose at test time, updating translation, rotation, and isotropic scale with CLIP-driven gradients via a differentiable renderer, without training a new model. Our framework augments language supervision with geometry-aware objectives: a variant of soft-Iterative Closest Point (ICP) term to encourage surface attachment and a penetration loss to discourage interpenetration. A phased schedule strengthens contact constraints over time, and camera control concentrates the optimization on the interaction region. To enable evaluation, we curate a benchmark containing diverse categories and relations, and compare against baselines. Our method outperforms all alternatives, yielding semantically faithful and physically plausible alignments.

Method Pipeline

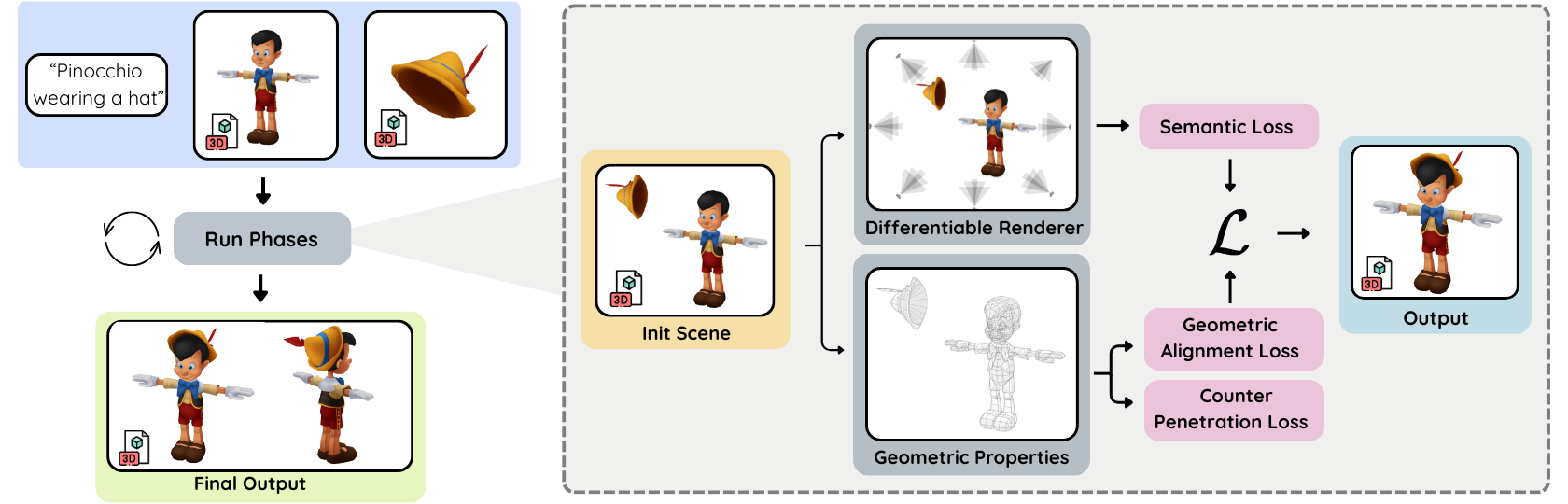

Overview of the proposed pipeline. Given two meshes and a text prompt, we optimize the relative pose and scale to produce a text-consistent alignment over $P$ phases. In each phase, we compose the scene, render with a differentiable renderer to obtain a semantic loss, and compute geometric losses. The best result of phase i initializes phase i+1; across phases we increase the fractional soft-ICP and penetration weights and progressively zoom the cameras in. The final output is an aligned 3D placement of the two meshes.

Optimization Process Examples

Prompt: …

1 / 1

Optimization process

Text-to-3D Alignment Results

…

1 / 1

Pizza mesh

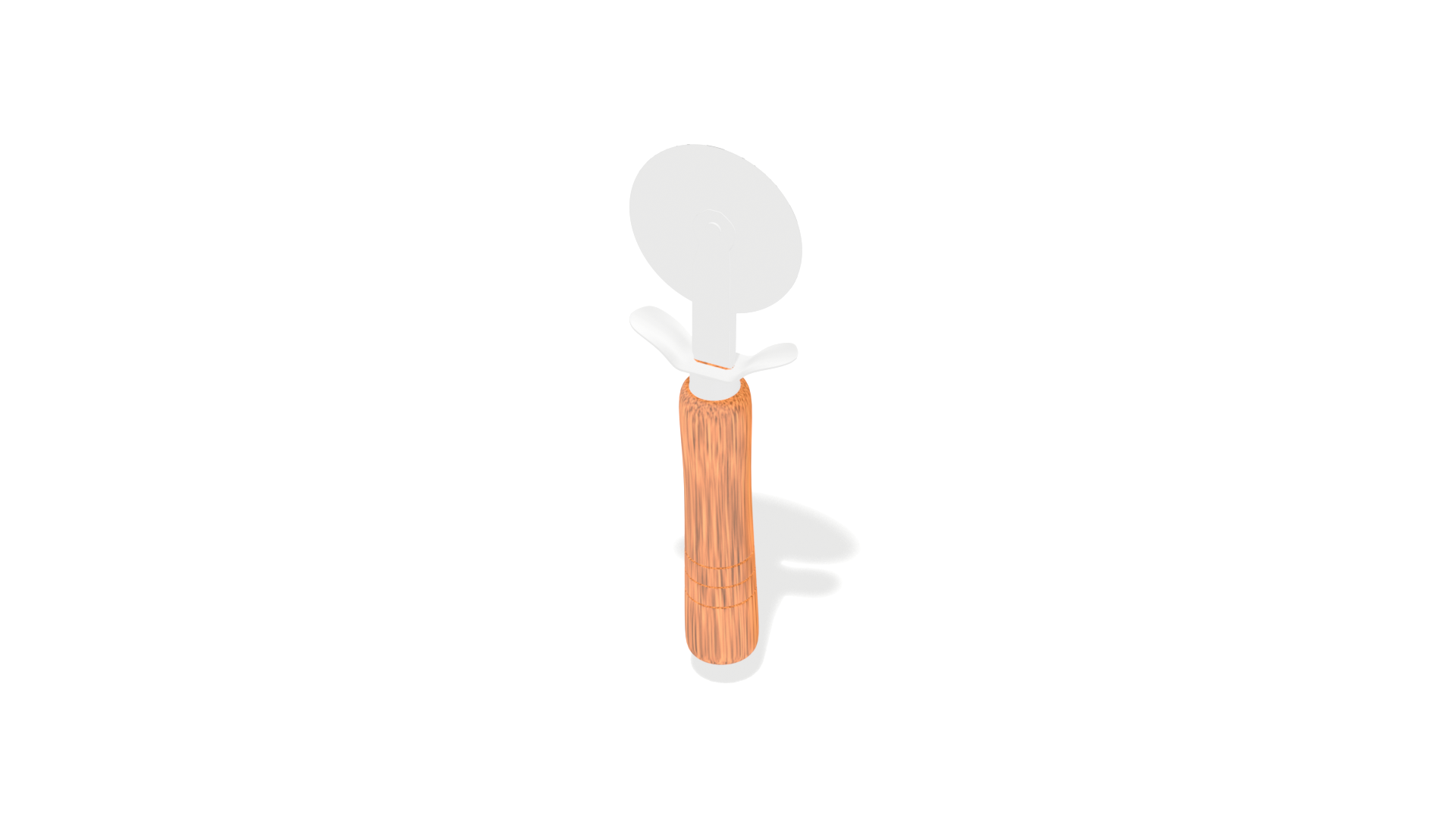

Pizza cutter mesh

Captain America mesh

Shield mesh

Rice mesh

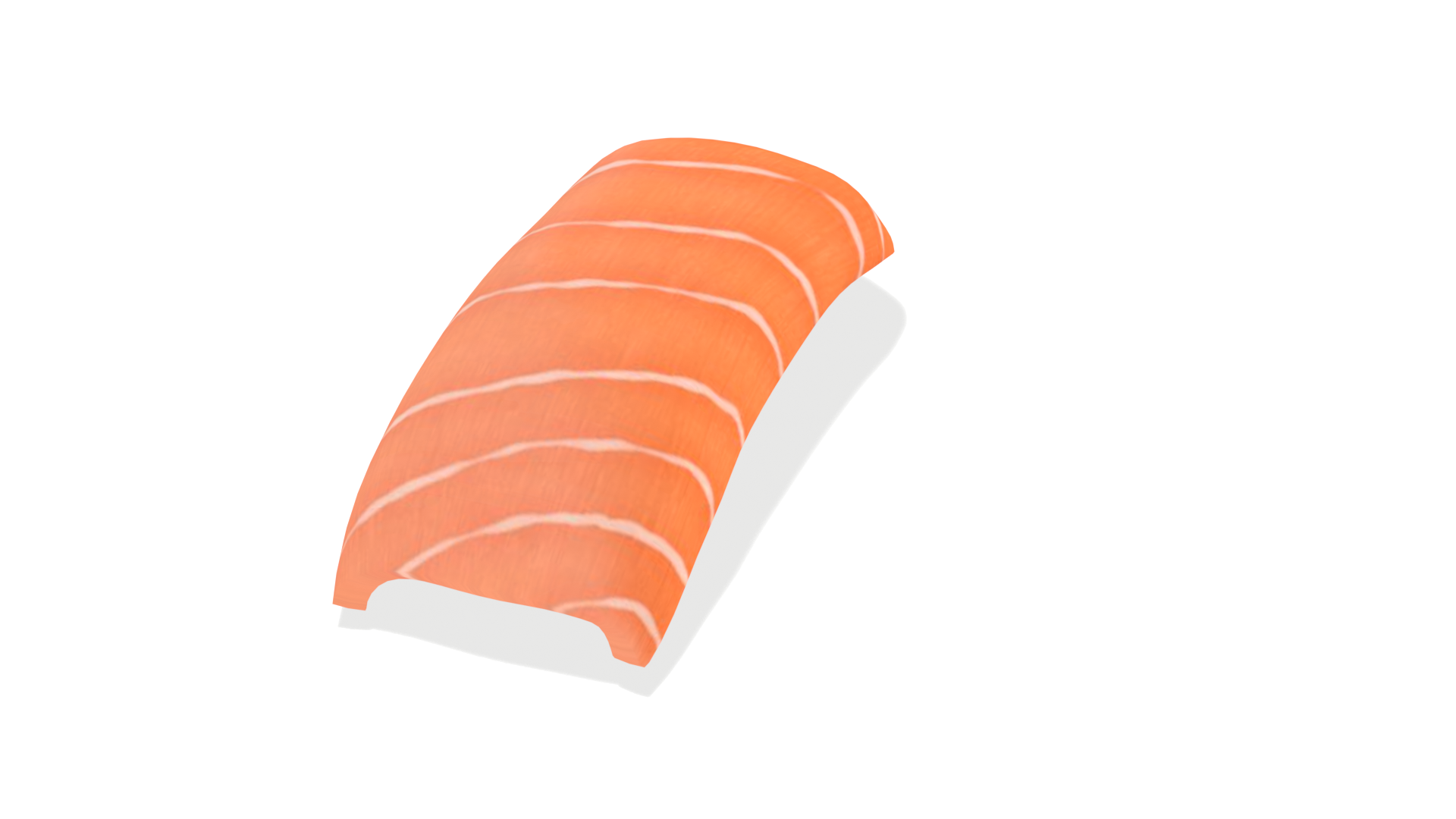

Fish mesh

Toast mesh

Cheese toast mesh

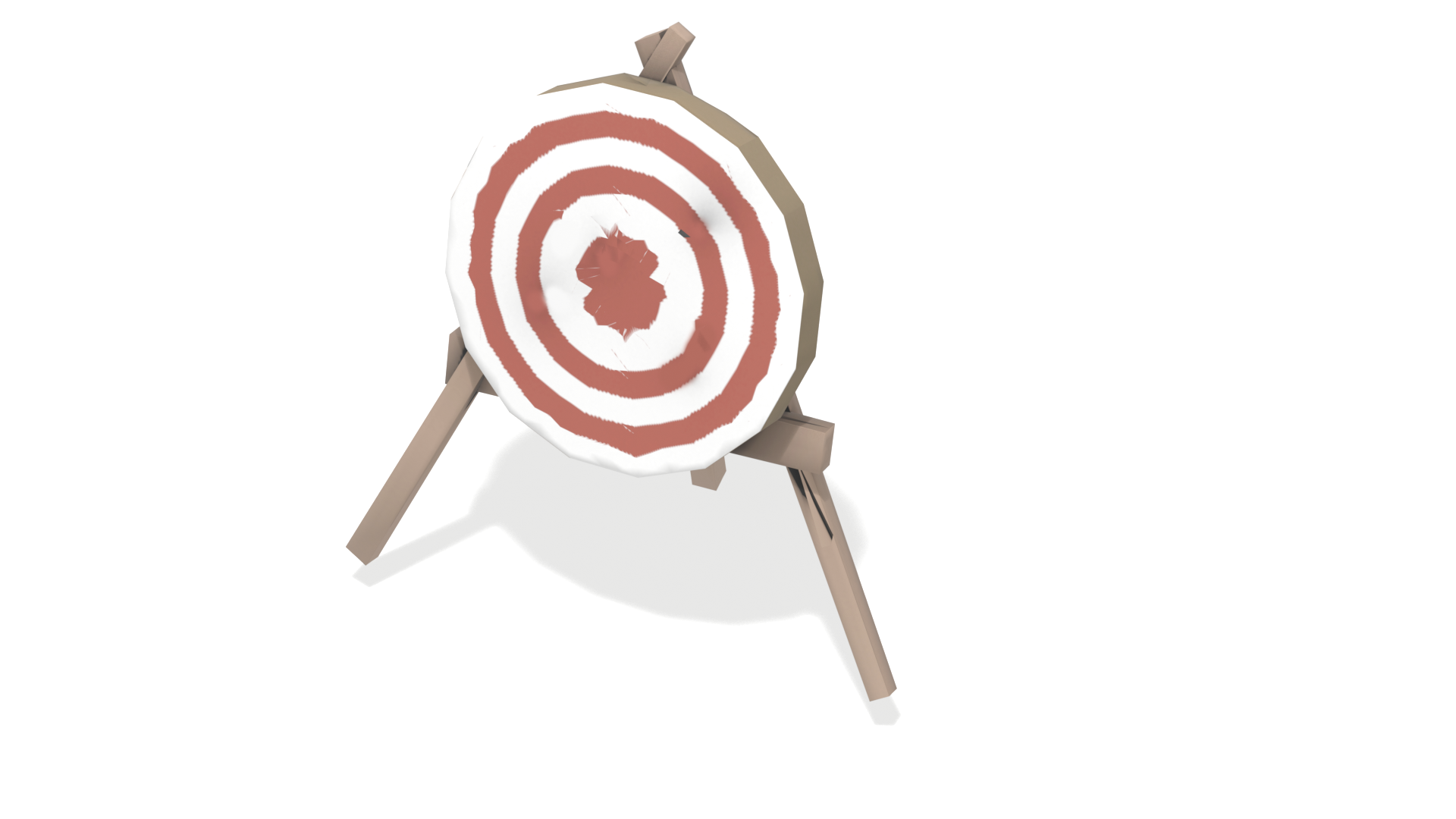

Target mesh

Arrow mesh

Image-to-3D Alignment Results

…

1 / 1

Axe mesh

Wood mesh

Reference image

Sundae mesh

Cherry mesh

Reference image

Paint can mesh

Paint brush mesh

Reference image

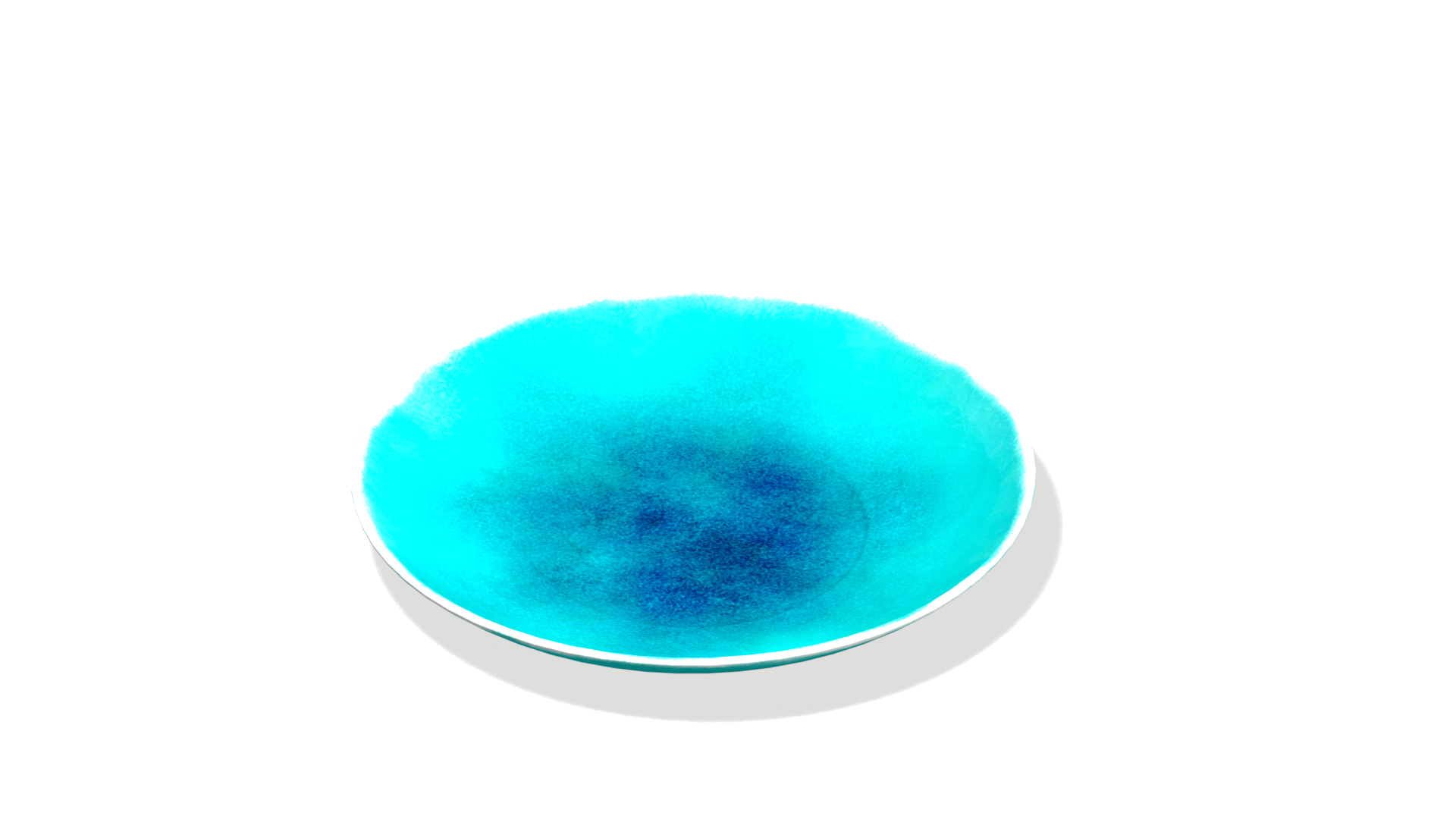

Coffee plate mesh

Coffee cup mesh

Reference image

Cupcake mesh

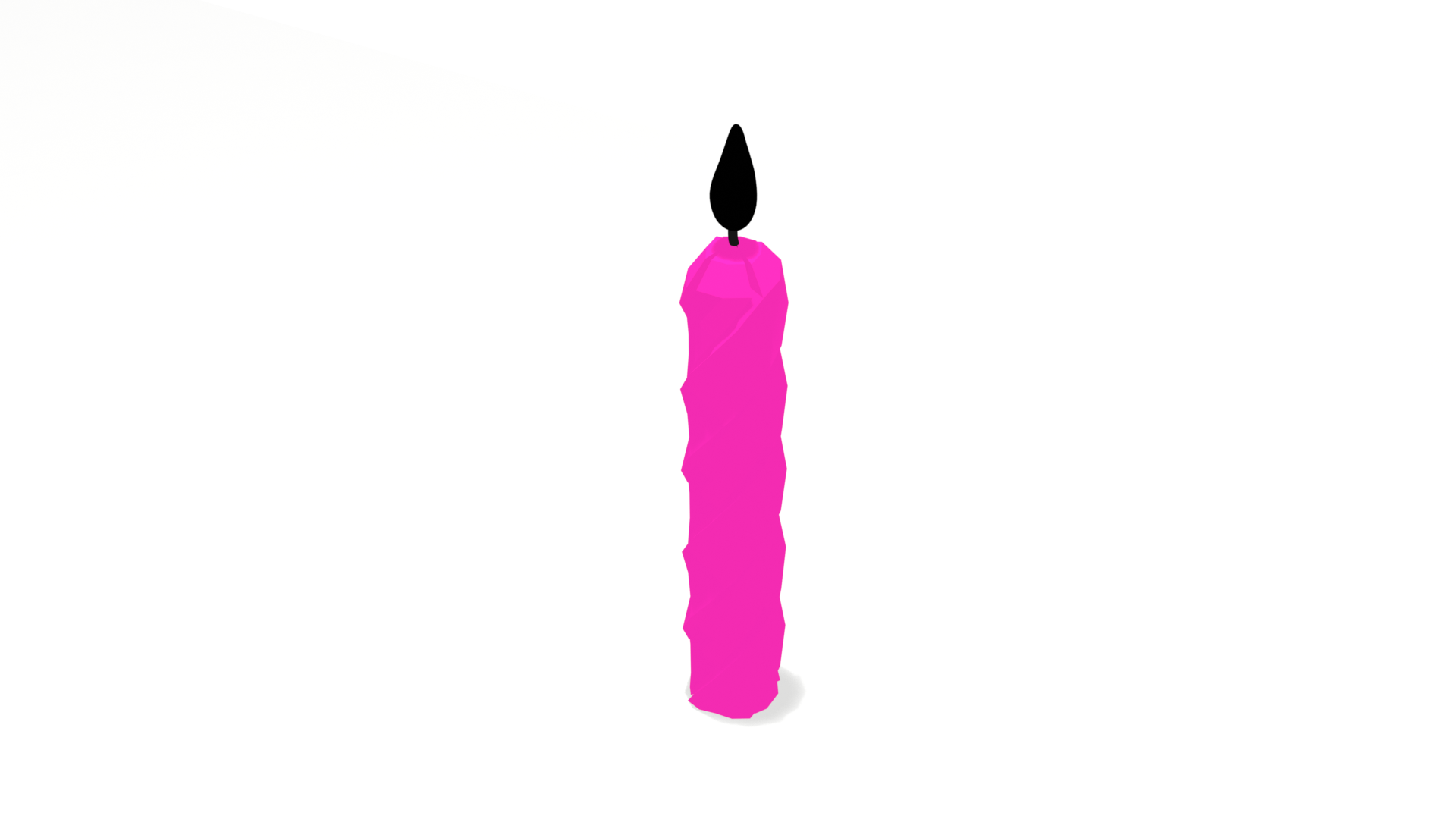

Candle mesh

Reference image

Citation

@misc{gatenyo2026copytrasformpastezeroshotobjectobjectalignment,
      title         = {Copy-Transform-Paste: Zero-Shot Object-Object Alignment Guided by Vision-Language and Geometric Constraints},
      author        = {Gatenyo, Rotem and Fried, Ohad},
      year          = {2026}
      eprint        = {2601.14207},
      archivePrefix = {arXiv},
      primaryClass  = {cs.GR},
      url           = {https://arxiv.org/abs/2601.14207}
    }
